1Kg Max Load Machine Unloading And Loading Industrial Robot

  • 1
  • 2

Brand Name : Hulk Robot

Model Number : HK5404

Certification : CE/ISO9001/IPMS

Place of Origin : Suzhou China

MOQ : 1 Set

Price : Negotiate

Payment Terms : T/T, L/C

Supply Ability : 200 sets per month

Delivery Time : 20 days

Packaging Details : Fill around the cardboard box with foam

Product name : Educational robotic arm,Stem robot,Educational manipulator

Degree of freedom : 5

Application : Picking,Load,handling,Assembly,Unloading,Feeding

Package dimension : 680 * 640 * 380mm (L*W*H)

Single Net weight : 13 kg/28.67 lb

Single Gross weight : 20 kg/44.01 lb

Color : Customized

Payload : 0.01~1kg

I/O : 5, can be extended by 16 I/O

Repeat position accuracy : ±0.05mm

Contact Now

1 Kg Max Load Machine Loading And Unloading Industrial Robot

Product description

This 1 Kg Max Load Machine Loading And Unloading Industrial Robot is a smart manipulator, which are small in size and wireless cloud-operable. The load of robot is 1KG, 4 dof, arm span of 540mm, a repeat positioning accuracy of less than ±0.05mm, no control cabinet and no reducer,which can realize drag teaching and network remote control. Provide comprehensive and professional personalized solutions for automotive parts, 3C electronics, unmanned retail, mechanical processing, vocational education and other industries and help enterprises, factories, shopping malls, schools and etc.to achieve effective automation upgrades and empowerment and efficiency.


Features
5DOF structural design,more flexiable

1 kg max payload

Affordable price
Free Android control software

Programming language: C++, C#,Python
Repeat positioning accuracy 0.05mm,more accurate.
Provide detailed user manual to learn how to programe and operate robotic arms


Technical parameter

Model HK5404
Maximum working radius 540mm
Number of axis 5
Installation Floor / desktop
N.W/ G.W 13kg/20kg
Repeat Positioning Accuracy ±0.05mm
Maximum Load 1kg
Power Consume 0.4KVA
Power supply Input:Single phase 110V-240V 50Hz Output:DC 24V(400W)
Voltage rating 220V 50 Hz
External communication WIFI/Ethernet
Application Industry, Academic, Teaching, Education
Safety standard ISO 9001-2015
Control software Hulkbot Studio
Drive System Steper motor
Working condition -10°C~60°C
I/O Input 5/Output 5,can be expanded by 16



Working rang of each axis

Axis Working Range Max Speed
Axis 1 ±160° 360°/s
Axis 2 -42°~85° 360°/s
Axis 3 -20°~100° 360°/s
Axis 4 ±165° 500°/s

Shipping List

Name Quantity
Robot arm 1
Power adapter 1
Emergency stop 1
Power cable 1

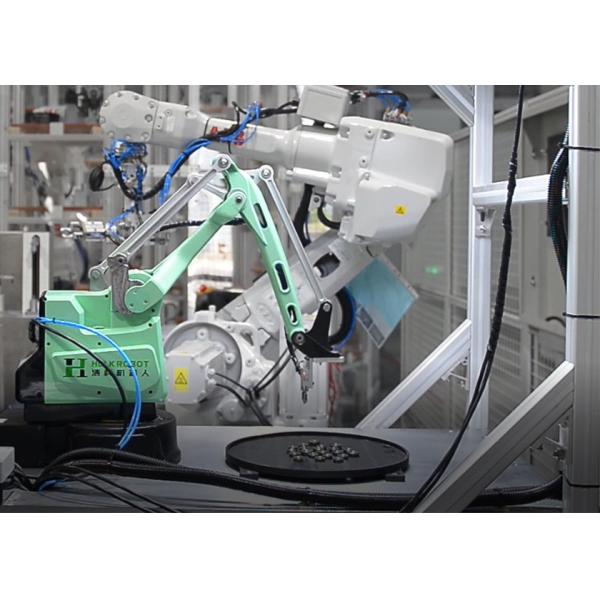

Detailed images
1Kg Max Load Machine Unloading And Loading Industrial Robot
